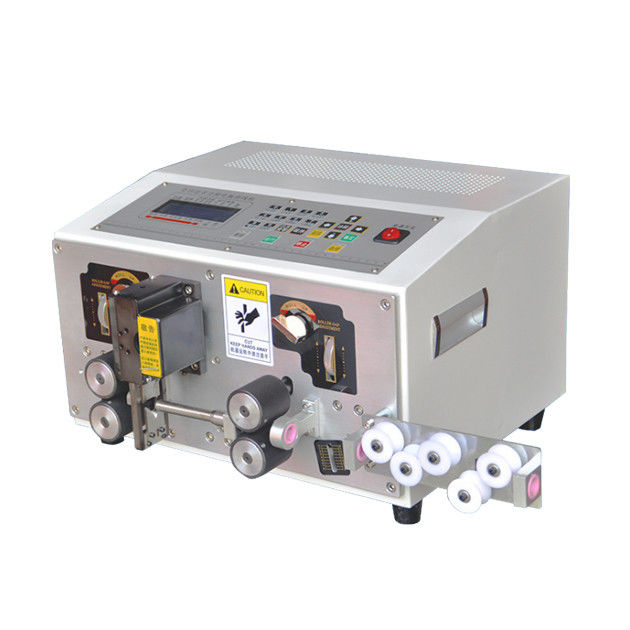

Fully Automatic Wire Cutting, Stripping & Bending Machine

Fully Automatic Wire Cutting, Stripping & Bending Machine
Fully Automatic Wire Cutting, Stripping & Bending Machine
Fully Automatic Wire Cutting, Stripping & Bending Machine Fully Automatic Wire Cutting, Stripping & Bending Machine

Μεγάλες Εικόνας :  Fully Automatic Wire Cutting, Stripping & Bending Machine

Λεπτομέρειες:
Τόπος καταγωγής: Κίνα
Μάρκα: ELITE
Αριθμό μοντέλου: Jr-002
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 3 PC
Τιμή: Contact Our Sales
Συσκευασία λεπτομέρειες: Ξύλινο Casee
Χρόνος παράδοσης: 2 εβδομάδες
Όροι πληρωμής: T/T
Δυνατότητα προσφοράς: 50 PC/ημέρα

Fully Automatic Wire Cutting, Stripping & Bending Machine

περιγραφή
πρότυπο: Jr-002 Χαρακτηριστικά γνωρίσματα: Κοπή καλωδίων που γδύνει και που κάμπτει
Διατομή αγωγών: 2-25mm2 Μήκος γδυσίματος: 0.1100mm
Τέμνον μήκος: 1100,000mm Τέμνουσες ανοχές: ± (0.001xL) χιλ.

Fully Automatic Wire Cutting, Stripping & Bending Machine



This wire bending machine is able to cut, strip and bend wires and cables up to 25mm2. It can strip both ends of the wire, and bend the wire into your requested angle.

This is a high performance wire cutting stripping and bending machine for processing a wide range of wires and cables;

Applicable wire sizes: 2-25mm2

It can not only strip both ends of the wire, but also bend the wire into your requested angle;

The straightforward display provides information in the selected language about the current processing status, very visualized;

The machine is mainly suitable for wire harness processing of electronics, electrical appliances, toys, automobile fittings and other industries;

Affordable price and perfect working performance.



Model JR-002
Features Wire cutting stripping and bending
Conductor cross-section 2-25mm2
Stripping length 0.1-100mm
Cutting length 1-100,000mm
Cutting tolerances ± (0.001xL)mm
Bending length Can be set
Bend shape/angle U shape, Z clockwise, counterclockwise bend, 30°, 45°, 60°, 90°
Production rate L=100mm, 2,000-3,000pcs/h
Power supply 110/220VAC, 50/60Hz
Power 600W
Conduit diameter Generally ⌀ 10mm, can be customized according to wire size
Display screen Chinese/English touch screen
Weight 88KG
Dimensions 95x88x82cm




































Fully Automatic Wire Cutting, Stripping & Bending Machine 0
